Different Types of Exhaust Mufflers (Explained)

Updated: Jan 29

Exhaust mufflers are an important component of a vehicle's exhaust system. They are designed to reduce the noise of the exhaust that is produced by the engine, making the vehicle more pleasant to drive and reducing the impact of engine noise.


In this article, we'll be explaining the different types of mufflers and their designs.



Table of Contents:


the underside of a vehicle showing the exhaust muffler

Types of Exhaust Mufflers

There are several different types of exhaust mufflers, each of which has its own unique characteristics and benefits.


  • Straight-through muffler. A straight-through muffler is a type of exhaust muffler that allows exhaust gases to pass through without obstruction and uses perforated tubes and chambers to reduce engine noise.

  • Chambered muffler. A chambered muffler is a type of exhaust muffler that uses chambers to split exhaust gases and reduce engine noise. The chambers cancel out sound waves, resulting in a quieter exhaust note.

  • Glasspack muffler. A glasspack muffler is a type of exhaust muffler that uses insulation (fibreglass, steel wool, etc.) to absorb noise. The insulation is packed inside the muffler to reduce overall noise, they are often used on older vehicles or for racing or off-road driving.


Straight-Through Muffler

One of the most common types of exhaust mufflers is the straight-through muffler. This type of muffler has a simple design that allows the exhaust gases to flow through it without any significant obstruction.


It uses a series of perforated tubes and chambers to cancel out the sound waves that are produced by the engine, reducing the overall noise.


Chambered Muffler

Another type of exhaust muffler is the chambered muffler. This type of muffler uses a series of chambers to split the exhaust gases into multiple streams, which helps to reduce the noise.


The chambers are designed to cancel out the sound waves that are produced by the engine, creating a quieter exhaust note.


Glasspack Muffler

A third type of exhaust muffler is the glasspack muffler. This type of muffler uses a layer of fiberglass insulation to absorb the sound waves that are produced by the engine.


The insulation is packed tightly inside the muffler, which helps to reduce the overall noise. Glasspack mufflers are often used on older vehicles or on vehicles that are used for racing or off-road driving.


glasspack muffler

Specialised Mufflers

In addition to these types of mufflers, there are also specialized mufflers that are designed for specific applications. For example, some mufflers are designed to reduce the noise of diesel engines, which typically produce a louder exhaust note than gasoline engines.


Other mufflers are designed for use on high-performance vehicles, and are able to provide a sporty exhaust note without creating excessive noise.


There are several different types of exhaust mufflers available, each of which has its own unique characteristics and benefits. Choosing the right muffler for your vehicle will depend on your specific needs and preferences, as well as the type of vehicle you have and how it is used.


Types of Muffler Design

Although there are three main types of muffler, there are several ways to design them.


  1. Baffle type muffler

  2. Wave cancellation type muffler

  3. Resonance type muffler

  4. Absorber type muffler

  5. Combined resonance and absorber type muffler

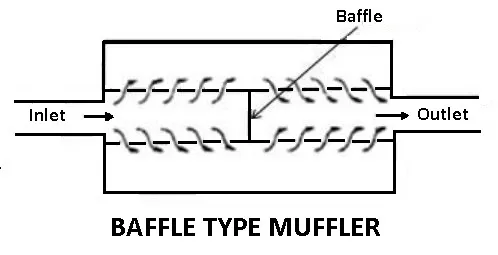

Baffle Type

It is made up of a number of baffles that are spot welded within the cylindrical body. These baffles function to prevent the direct route of the exhaust gases, causing the gases to traverse a longer course through the muffler.


The baffles used in the muffler come in a variety of designs. The illustration depicts two kinds of low-efficiency mufflers. Due to the limited passage of the exhaust gases, back pressure builds causing the loss of engine horsepower.


baffle type exhaust muffler diagram

Wave Cancellation Type

In a wave cancellation type muffler, the exhaust gases are divided into two paths as they enter the muffler.


The length of these paths are adjusted so that when the gases exit the muffler, the crests of one wave coincide with the troughs of the other wave, effectively canceling each other out and reducing noise.


This is most effective when the lengths of the two paths differ by half the wavelength of the noise.


However, since the noise produced by exhaust gases is a combination of different frequencies at different engine speeds, this is not always possible to achieve in practice. Despite this, a wave cancellation type muffler is still able to reduce noise significantly.


wave cancellation type exhaust muffler diagram

Resonance Type

A Helmholtz (resonance) muffler consists of a series of resonators that are connected by a pipe through which the exhaust gases pass.


This type of muffler was named after the person who first proposed the idea, Helmholtz. As the gases flow through the resonators, they eliminate the fundamental and higher harmonics of engine noise, reducing the overall noise.


a Helmholtz resonance type muffler diagram

Absorber Type

An absorber type muffler consists of a perforated tube surrounded by sound-absorbing material such as fiberglass or steel wool.


As the exhaust gases pass through the perforated tube, the sound-absorbing material reduces the high-pressure fluctuations, effectively reducing the noise intensity. These mufflers can be either straight-through or reverse flow.


absorber type muffler diagram

Combined Resonance and Absorber Type Muffler

Sometimes, an absorber type muffler will include a resonance chamber at one end or in the middle to further reduce pressure and noise.


In some designs, the resonance chamber is a separate unit called a resonance that is connected in series to the muffler. This helps to reduce noise even more effectively.


Combined Resonance and Absorber Type Muffler diagram
