Chrysler 6.1L Hemi Engine (Design, Issues & Reliability)

The Chrysler 6.1 Hemi is a 6.1 litre naturally aspirated V8 petrol engine producing 425 hp and 569 nm of torque. It was first introduced in the 2005 Chrysler 300C SRT-8, it was built until 2010.

The 6.1L Hemi engine was still widely available in 2010. The Dodge Challenger SRT-8, Charger SRT-8, Magnum SRT-8, and Jeep Grand Cherokee SRT-8 all used the 6.1L Chrysler V8 at this time.

Table of Contents:

• Design

• Specs

• Problems & Reliability

• Is It Reliable?

• Images

Chrysler 6.1L Hemi Engine Design

There are multiple ways in which the 6.1 Hemi cylinder block differs from the 5.7 Hemi cylinder block. Stronger bulkheads and redesigned coolant passageways alter the cast-iron deep-skirt engine block's basic structural design.

• The diameter of each cylinder was increased by 3.5 mm in order to increase the overall displacement from 5.7 to 6.1 litres.

• Additionally, oil squirters were installed in the engine block to cool the pistons and increase engine lifespan.

• The crankshaft is made of forged steel.

• A stronger powder metal alloy has been incorporated to the connecting rods.

• Larger-diameter flat-top pistons with a 10.3:1 compression ratio are used in the engine.

6.1 Hemi engines have redesigned cylinder heads with a larger cross-sectional area in their ports. The revised heads increase intake flow by 11% and exhaust flow by 13% as a consequence. The intake valves are also 2 mm larger than the 5.7 Hemi engine.

A billet steel high-strength camshaft with improved overlap and lift was installed and was tuned for higher engine speeds of 6,400 rpm. The 6.1 Hemi differs from the 5.7 Hemi engine in that it is not fitted with either Chrysler's Multi-Displacement System (MDS) or variable camshaft timing (VCT).

The aluminium intake manifold for the 6.1 V8 has shorter, tapered, larger-diameter runners. The specially constructed intake is missing the variable-length technology seen in some 5.7 V8 engines.

The ECU is in responsible of the multi-port fuel injection system of the SRT 6.1 Hemi engine. Fuel injector flow capacity has been raised by 14% over the 5.7 Hemi to handle greater engine speeds and airflow.

The 5.7L and 6.1L Hemi share the same electronic throttle body.

The exhaust system was designed by SRT specialists in addition to a high-performance intake system. Stainless steel exhaust headers increase power by 12 hp compared to the 5.7 Hemi.

6.1L Hemi engines have a separate coil for each cylinder and two spark plugs with platinum tips, like the majority of modern Hemi engines.

The SRT 6.1 Hemi engine produces 25% more power (85 hp and 30 ft-lb of torque) than the 5.7 Hemi engine while still meeting emissions regulations, providing respectable fuel efficiency, reliability, and longevity.

Engine Specs

• Manufacturer: Chrysler, Saltillo Engine plant in Ramos Arizpe, Mexico

• Production years: 2005-2010

• Cylinder block material: Cast iron

• Cylinder head material: Aluminium

• Fuel type: Gasoline

• Fuel system: Sequential multi-port fuel injection

• Configuration: V

• Number of cylinders: 8

• Valves per cylinder: 2

• Valvetrain layout: OHV

• Bore: 103.0 mm (4.06 in)

• Stroke: 90.9 mm (3.58 in)

• Displacement: 6,059 cc (370 cu in)

• Type: Four-stroke, naturally aspirated

• Compression Ratio: 10.3:1

• Power: 425 hp (318 kW) at 6,000 rpm

• Torque: 420 ft-lb (569 Nm) at 4,800 rpm

• Firing order: 1-8-4-3-6-5-7-2

• Engine oil weight: SAE 0W-40

• Engine oil capacity: 6.6 litres (7.0 qt) with oil filter

• Oil change interval: 6,000 miles (10,000 km) / 6 months

• Applications: Chrysler 300C SRT-8, Dodge Magnum SRT-8, Dodge Charger SRT-8, Jeep Grand Cherokee SRT-8, Dodge Challenger SRT-8

Problems & Reliability

There aren't a lot of common problems or malfunctions with the gen3 HEMI V8 engine series. The 6.1 HEMI engine exceeds the 5.7 and 6.4 HEMI V8s in terms of durability, but lacks technologies like MDS and an active intake system.

However, the issues listed below do arise more commonly than others.

1. Seized Lifter / Lifter Rollers

All contemporary HEMI V8 engines have a similar issue with seized lifter/lifter rollers. A lack of lubrication or corrosion may cause one or more lifter rollers in the valvetrain to seize between 70,000 and 120,000 miles.

Some argue that poor design is to blame for the lifters' issues. An unreliable lifter damages the camshaft lobe and introduces metal shavings into the engine oil. Metal on metal contact produces a ticking sound, which is the most obvious sign of a damaged lifter.

However, the 6.1 Hemi "ticking" sound is also frequently heard, making it considerably more difficult to identify the problem. Troubleshooting signs include misfiring, the check engine light, and other unusual noises.

Unfortunately, at this point you'll need to replace the timing chain, lifters, camshaft, and maybe other parts as well.

2. Ignition System

Although not a major concern its still worth noting that problems with the ignition system could occur, such as misfiring. With 16 spark plugs, the 6.1 HEMI has a lot of room for error.

If your 6.1 HEMI is misfiring, a basic spark plug change may be the solution. Spark plugs will likely last 30,000–40,000 miles.

Is the 6.1L V8 Hemi Reliable?

Without a doubt, it is a brilliant and dependable engine. The 6.1 Hemi engine is a powerful engine that provides a nice balance between performance and longevity. If you keep this engine in good condition and service it regularly, it can easily run for 300,000 miles.

Images

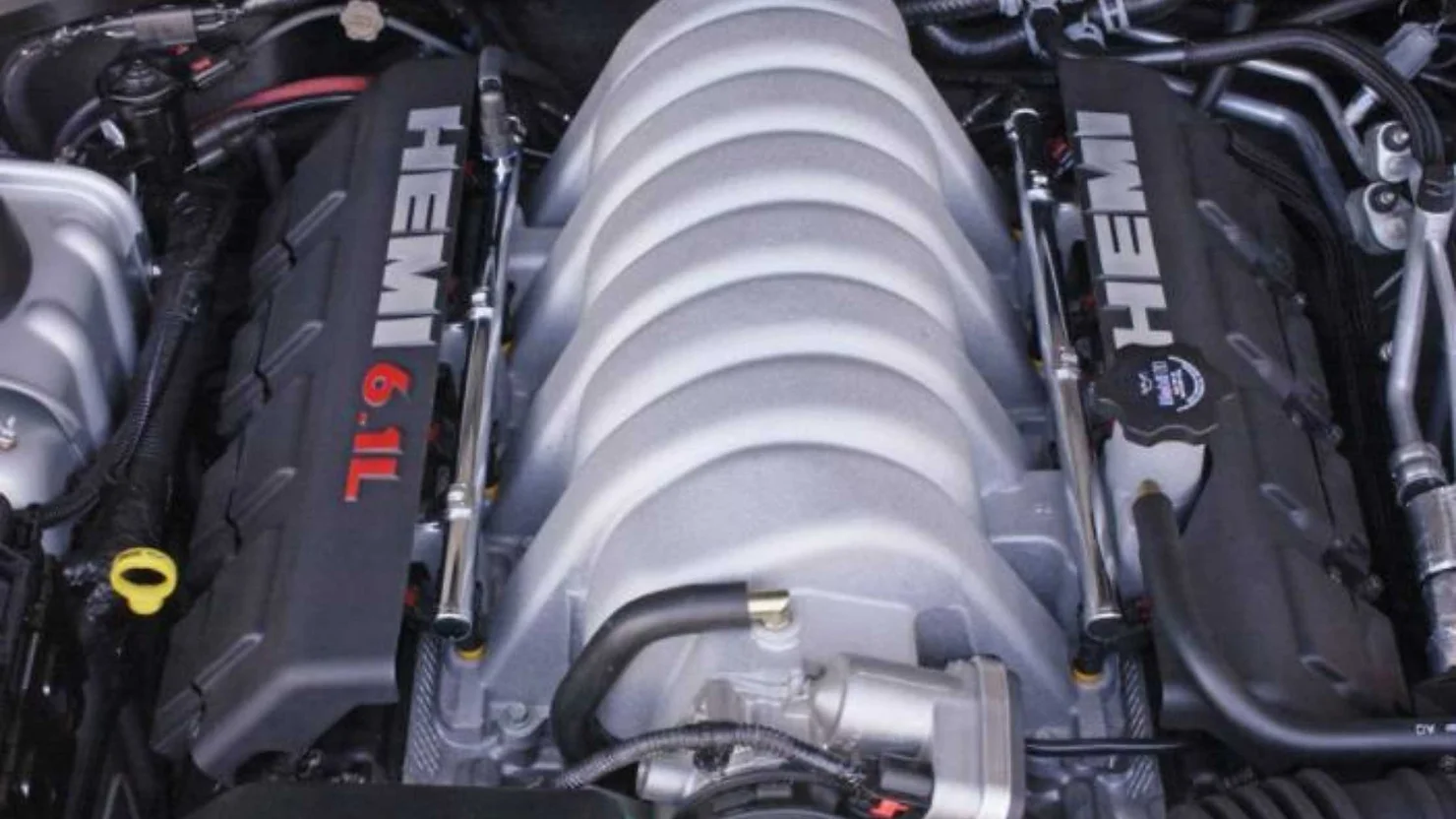

Below are images of the Chrysler 6.1L Hemi engine.
